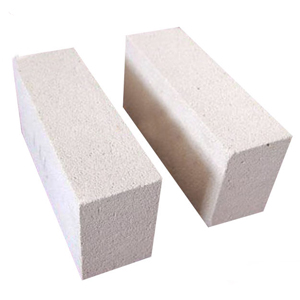

Mullite Insulation Brick Description
The 3Al₂O₃•2SiO₂ is as principal crystalline phase and binder phase of light weight mullite brick, choose the excellent high purity refractory powder, according to the products requirement proportion, add organic compound filler, it is a new kind of insulation refractory material made by vacuum extrusion molding, high temperature sintering and preparation and processing.
Besides mineral composition– 3Al₂O₃•2SiO₂, the mullite brick with low alumina oxide has small amount of glass phase and cristbalite; The mullite brick with high alumina oxide has small amount of corundum.
Characteristics of Mullite Insulation Brick
Owing to the mullite brick has the properties of excellent high temperature mechanical properties and chemical stability, lightweight mullite brick has advantages of high temperature structure strength, low temperature creep rate, small coefficient of thermal expansion, strong chemical resistance, good thermal shock resistance, etc.
Chemical and Physical Index of Mullite Insulation Brick
| Brand Item | JM23 | JM26 | JM28 | JM30 | |
| Max Temperature ( C) | 1260 | 1460 | 1540 | 1700 | |
| Bulk Density (g/cm3) | 0.55-0.60 | 0.8 | 0.89 | 1.03 | |
| Cold Crushing Strength (Mpa) | 1.2 | 1.6 | 2.1 | 2.5 | |
| Modulus of Rupture (Mpa) | 0.9 | 1.4 | 1.6 | 2.1 | |
| Reheating Linear Change (%) CT -30 °CX 8H | 1230 °C -0.5 | 1400 °C -0.5 | 1510 °C -0.5 | 1620 °C -0.9 | |
| Thermal Expansion 1100 °C( % ) | 0.5 | 0.7 | 0.8 | 0.8 | |
| Thermal conductivity (W/m.k ) | 400 °C | 0.14 | 0.27 | 0.32 | 0.41 |
| 600 °C | 0.16 | 0.29 | 0.34 | 0.43 | |
| 800 °C | 0.18 | 0.31 | 0.36 | 0.44 | |
| 1000 °C | 0.20 | 0.33 | 0.38 | 0.45 | |
| Al2O3 % | 37 | 50 | 64 | 72 | |
| Fe2O3 % | 1.0 | 1.0 | 1.0 | 0.5 | |
Application of Mullite Insulation Brick
Mullite insulation brick is widely used in metallurgy, petrifaction, building materials, ceramics, machinery and hot surface lining and lining of various industrial furnace. Such as cracking furnace, conversion furnace, heating equipment, refining equipment, regenerative equipment, hot blast furnace, heating furnace, resistance furnace, tunnel kiln, roller kiln, shuttle kiln, elevator furnace, glass kin, etc.
