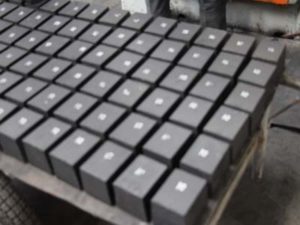

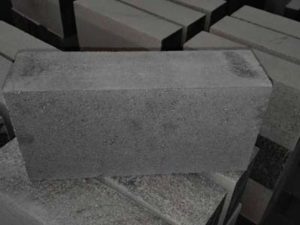

Silica Carbide Brick Introduction
Silica carbide fire Brick is made of SiC as the main material, which include 72%~99% SiC content, which have features of high thermal conductivity, great wear resistance, good thermal shock resistance, low heat expansion coffocient, etc. Silicon carbide fire brick is a kind of very important refractory materials for various furnaces and kilns which are of high temperature and high strength erosion atmosphere.
Silica Carbide Brick Properties
- High heat conductivity
- Good abrasive resistance
- Great thermal shock resistance
- Excellent erosion resisting
- Strong resistant to acid and alkali slag erosion
- High strength
- Low heat expansion coefficient
Silica Carbide Brick Physical & Chemical Index
| Silicon Carbide Bricks | ||||
| Items | Unit | SiO2 Bonded Silicon Carbide Bricks | Azoxty-cornpounds Bonded Silicon Carbide Bricks | Mullite Bonded Silicon Carbide Bricks |
| Al2O3 | % | ~ | ~ | ≥10 |
| SiO2 | % | ≤8 | ~ | ~ |
| Fe2O3 | % | ≤1 | ≤0.6 | ≤1 |
| Sic | % | ≥90 | ≥80 | ≥85 |
| Apparent Porosity | % | ≤18 | ≤18 | ≤18 |
| Bulk Density | g/cm3 | ≥2.56 | ≥2.60 | ≥2.56 |
| Cold Crushing Strength | Mpa | ≥80 | ≥100 | ≥70 |
| Refractoriness under Load | ℃ | ≥1600 | ≥1620 | ≥1550 |
| Thermal Shock Stability （Time/850） | ℃ | ≥40 | ≥40 | ≥35 |
| Thermal Conductivity | w/m*k | ≥8 | ~ | ~ |
| Normal Temperature Bending Strength | Mpa | ≥25 | ≥30 | ≥25 |
| High Temperature Bending Strength 1250℃*1h | Mpa | ≥20 | ≥25 | ≥20 |
| Maximum Service Temperature | ℃ | 1400 | 1500 | 1400 |
Silica Carbide Brick Application
- Aluminium cell lining
- Zinc smelting industry vertical cylinder distillation furnace
- Molten aluminium tubular conductor
- Ceramic kiln
- Large and medium blast furnace
- Furnace lining of Aluminium refining furnace
- Lining of zincretort
Silica Carbide Brick Manufacturer
RS Refractory Material Supplier is specialized in producing and selling silica carbide birck. Our main products including high alumina refractory bricks, , light weight insulating bricks, fireclay refractory bricks, magnesia bricks, corundum bricks, silica bricks, graphite brick, checker bricks, burner bricks, etc. And out products have been sold to many countries and get good feedback. If you have any purchase plan about refractory materials and want to get more information, welcome contact with us!
