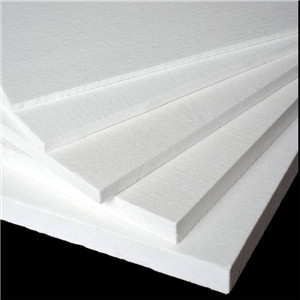

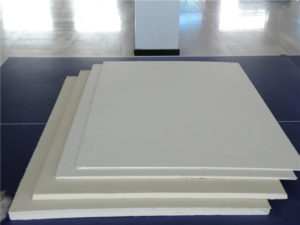

Ceramic Fiber Board Introduction
Ceramic fiber board , also named as aluminum silicate fiberboard, a board made of refractory ceramic fiber material. Even after heating, ceramic fiber refractory board still has good mechanical strength. The product is a fibrous insulation product with rigidity and supporting strength than fiber blanket and felt.
Ceramic Fiber Board Properties
Low thermal conductivity
Low thermal capacity
Excellent thermal insulation property
High temperature stability
Resistance to thermal shock
Good tensile strength
Corrosion resistance.
Excellent sound absorption
Fire protection and chemical corrosion resistance
Ceramic Fiber Board Physical & Chemical Index
| Type | common | standard | high pure | high aluminum | zircon | |
| classification Temperature(℃) | 1100 | 1260 | 1260 | 1360 | 1430 | |
| Working Temperature(℃) | ≤1000 | 1050 | 1100 | 1200 | 1350 | |
| color | white | pure white | pure white | pure white | pure white | |
| Shrinkage on heating (%)(Temperature 24 hours, density as 320kg/m3)
| -4 (1000°C) | -3 (1000°C)
| -3 (1100°C)
| -3 (1200°C)
| -3 (1350°C)
| |
| Thermal conductivity of various temperatures (w/m.k) (density 285kg/m3) | 0.085 (400°C) 0.132 (800°C) 0.180 (1000°C) | 0.085 (400°C) 0.132 (800°C) 0.180 (1000°C) | 0.085 (400°C) 0.132 (800°C) 0.180 (1000°C) | 0.085 (400°C) 0.132 (800°C) 0.180 (1000°C)
| 0.085 (400°C) 0.132 (800°C) 0.180 (1000°C)
| |
| Compressive strength (Mpa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Chemical composition (%)
| AL2O3 | 44 | 46 | 47-49 | 52-55 | 39-40 |
| AL2O3 +SIO2 | 96 | 97 | 99 | 99 | – | |
| AL2O3 +SIO2+ZrO2 | – | – | – | – | 99 | |
| ZrO2 | – | – | – | – | 15-17 | |
| Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | |
| Na2O+K2O
| <0.5 | <0.5
| 0.2 | 0.2 | 0.2 | |
| Dimensions (mm)
| Common Specifications: 600*400*10-50; 900*600*10-50 1200*500*10-50; 1200*1000*10-50; 1000*600*10-50 Other specifications can be available.
| |||||
Ceramic Fiber Board Application
Use in industrial heat process equipment
High temperature gasket & seals
Flue & chimney linings in furnace & kilns
Molten metal trough covers
Expansion joint Industrial heat shields & thermal barriers
Industrial combustion chamber construction
Infra red element supports
Board over blanket hot face lining
Full thickness refractory lining
High temperature boiler wall insulation
Pouring forms for castable
Lining material for glass annealing furnace
Various fire-resistant insulation materials
Insulation for semiconductor equipment
Ceramic Fiber Board Manufacturer
Ceramic fiber boards produced by RS refractory brick are adopting high quality raw material and produced through strict control. RS refractory manufacturer is specialized in producing various ceramic fibers, such as ceramic fiber blankets, ceramic fiber boards, ceramic fiber papers, ceramic fiber wools, ceramic fiber ropes, ceramic fiber cloths. If you have any purchase plan for ceramic fiber refractory materials, please feel free to contact with us!
